Beta® 520 Beta 520
With a 60A Shore hardness, the Beta 520 series has a softer PVC coating with a matte finish. It has very good chemical resistance, and comes in a variety of colors, widths, and profiles, all detailed below.
Width and Profile Options
* Break strength value is per inch of width. Example 2’’ (50.8mm) is 2000lbs (907.1847kg) or 3/4’’ (19.05mm) is 750lbs (340.194kg). ASTM D6775-02
** All Hole Pull Strength values are based on a 1’’ wide specimen. ASTM D4831
| Profile | Thickness | Break Strength * |
Hole Pull Strength ** |
Available Widths |
|---|---|---|---|---|
B05 Ultra Thin |
.030" - .040", .76mm - 1.02mm | 400lbs (181.437kg) | 40lbs (18.144kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
1" (25.40 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
|
B05 Super Flex |
.055" - .065", 1.40mm - 1.65mm | 400lbs (181.437kg) | 40lbs (18.144kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
1" (25.40 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
|
B07 Adjustable |
.055" - .065", 1.40mm - 1.65mm | 600lbs (272.155kd) | 100lbs (45.359kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
1" (25.40 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
4" (101.60 mm)
|
B07 Ultra Thin |
.030" - .040", .76mm - 1.02mm | 600lbs (272.155kd) | 100lbs (45.359kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
1" (25.40 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
3" (76.20 mm)
|
|
B07 Super Flex |
.055" - .065", 1.40mm - 1.65mm | 600lbs (272.155kd) | 100lbs (45.359kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
1" (25.40 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
4" (101.60 mm)
|
B10 Super Flex |
.055" - .065", 1.40mm - 1.65mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B10 High Flex |
.075" - .085", 1.91mm - 2.16mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B10 Standard |
.095" - .105", 2.41mm - 2.67mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B10 Grooved |
.095" - .105", 2.41mm - 2.67mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B10 Ex Thick Grooved |
.125" - .135", 3.17mm - 3.43mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B10 Super Heavy |
.140" - .160", 3.56mm - 4.06mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B30 Super Heavy |
.130" - .160", 3.30mm - 4.06mm | 3000lbs (1360.777kg) | 700lbs (317.515kg) |
3/4" (19.05 mm)
1" (25.40 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
|
B30 Super Heavy Grooved |
.130" - .160", 3.30mm - 4.06mm | 3000lbs (1360.777kg) | 700lbs (317.515kg) |
3/4" (19.05 mm)
1" (25.40 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
|
B30 Super Thick |
.130" - .160", 3.30mm - 4.06mm | 3000lbs (1360.777kg) | 700lbs (317.515kg) |
3/4" (19.05 mm)
1" (25.40 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
|
Buy a Sample

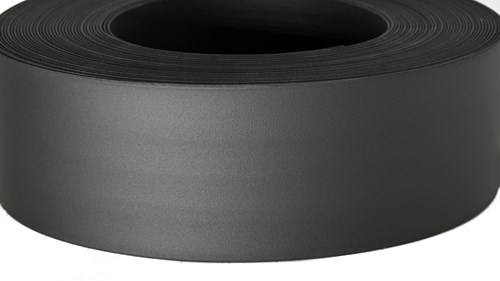

Thickness: 0.035'' (0.88 mm) - Ultra Thin (UT)
Break Strength: 1,200lbf (544kgf)
Hole Pull: 100lbf (45kgf)
Width: 2" (50.80 mm)
Gloss: Low Gloss
Base Price: $76.15 / 50' Roll

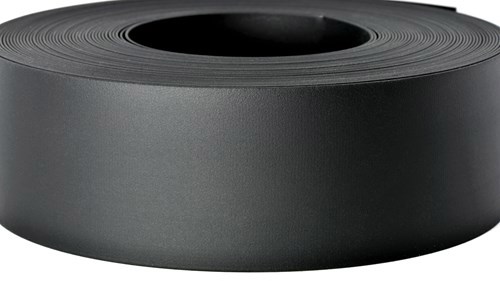

Thickness: 0.035'' (0.88 mm) - Ultra Thin (UT)
Break Strength: 1,700lbf (771kgf)
Hole Pull: 100lbf (45kgf)
Width: 2" (50.80 mm)
Gloss: Low Gloss
Base Price: $76.15 / 50' Roll

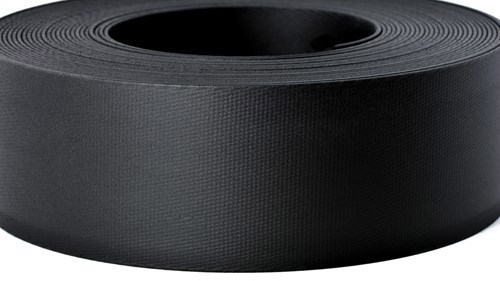

Thickness: 0.050" (1.27 mm) - Thin Flex (TF)
Break Strength: 2,500lbf (1133kgf)
Hole Pull: 280lbf (127kgf)
Width: 2" (50.80 mm)
Gloss: Low Gloss
Base Price: $90.65 / 50' Roll

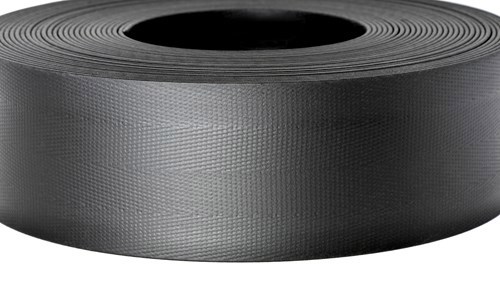

Thickness: 0.060" (1.52 mm) - Super Flex (SF)
Break Strength: 4,400lbf (1995kgf)
Hole Pull: 240lbf (108kgf)
Width: 2" (50.80 mm)
Gloss: Low Gloss
Base Price: $95.45 / 50' Roll

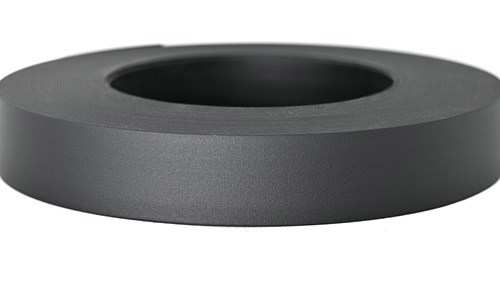

Thickness: 0.035'' (0.88 mm) - Ultra Thin (UT)
Break Strength: 625lbf (283kgf)
Hole Pull: 100lbf (45kgf)
Width: 1" (25.40 mm)
Gloss: Low Gloss
Base Price: $48.30 / 50' Roll

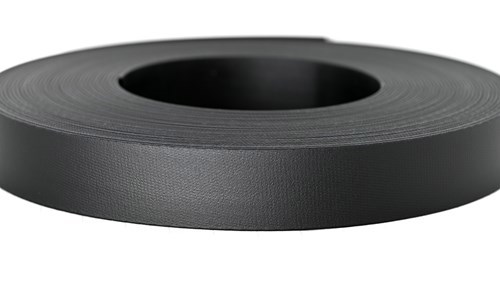

Thickness: 0.050" (1.27 mm) - Thin Flex (TF)
Break Strength: 1,250lbf (566kgf)
Hole Pull: 250lbf (113kgf)
Width: 1" (25.40 mm)
Gloss: Low Gloss
Base Price: $51.10 / 50' Roll

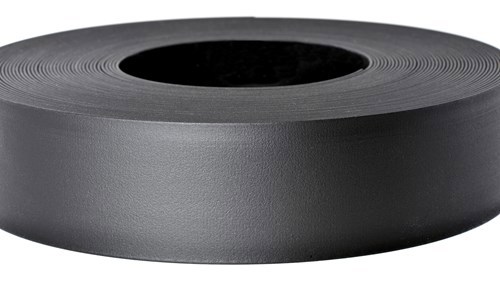

Thickness: 0.035'' (0.88 mm) - Ultra Thin (UT)
Break Strength: 1,100lbf (498kgf)
Hole Pull: 100lbf (45kgf)
Width: 1 1/2" (38.10 mm)
Gloss: Low Gloss
Base Price: $66.40 / 50' Roll
Thickness: 0.060" (1.52 mm) - Super Flex (SF)
Break Strength: 2,800lbf (1270kgf)
Hole Pull: 250lbf (113kgf)
Width: 1 1/2" (38.10 mm)
Gloss: Low Gloss
Base Price: $72.10 / 50' Roll
Thickness: 0.035'' (0.88 mm) - Ultra Thin (UT)
Break Strength: 450lbf (204kgf)
Hole Pull: 90lbf (40kbf)
Width: 3/4" (19.05 mm)
Gloss: Low Gloss
Base Price: $41.05 / 50' Roll

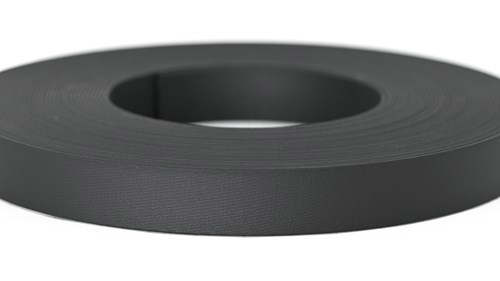

Thickness: 0.050" (1.27 mm) - Thin Flex (TF)
Break Strength: 825lbf (374kgf)
Hole Pull: 130lbf (58kgf)
Width: 3/4" (19.05 mm)
Gloss: Low Gloss
Base Price: $43.45 / 50' Roll

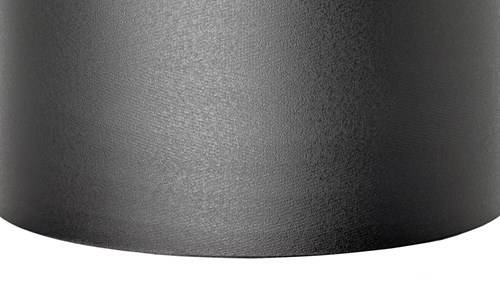

Thickness: 0.035'' (0.88 mm) - Ultra Thin (UT)
Break Strength: 2,000lbf (907kgf)
Hole Pull: 75lbf (34kgf)
Width: 3" (76.20 mm)
Gloss: Low Gloss
Base Price: $126.30 / 50' Roll

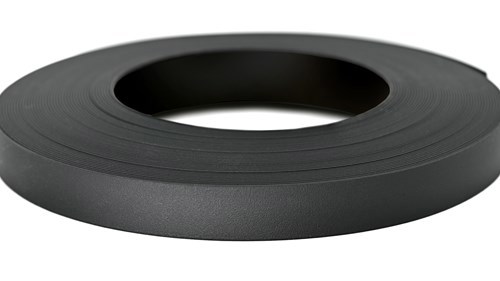

Thickness: 0.035'' (0.88 mm) - Ultra Thin (UT)
Break Strength: 350lbf (158kgf)
Hole Pull: 50lbf (22kgf)
Width: 5/8" (15.87 mm)
Gloss: Low Gloss
Base Price: $39.10 / 50' Roll

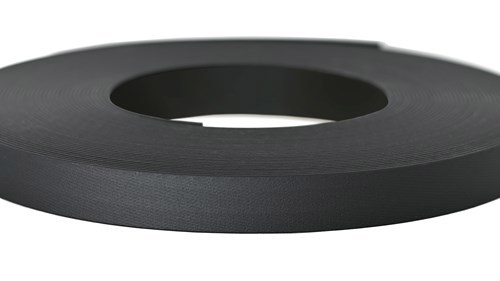

Thickness: 0.050" (1.27 mm) - Thin Flex (TF)
Break Strength: 650lbf (294kgf)
Hole Pull: 130lbf (58kgf)
Width: 5/8" (15.87 mm)
Gloss: Low Gloss
Base Price: $41.25 / 50' Roll

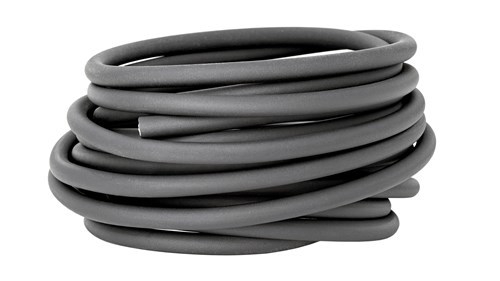

Thickness: 0.235" (5.97 mm) - Coated Rope (CR)
Break Strength: 400lbf (181kgf)
Hole Pull: N/A
Width: 1/4" (6.35 mm) Rope
Gloss: Low Gloss
Base Price: $30.00 / 15' Roll
