Medical

In today’s world, it’s more important than ever that medical products be durable, reusable, and easily disinfected. BioThane Coated Webbing allows for the peace of mind that uncoated webbing cannot provide.

BioThane Coated Webbing can be made in a variety of different widths, thicknesses, and profiles to meet your unique needs. BioThane has been used to produce:

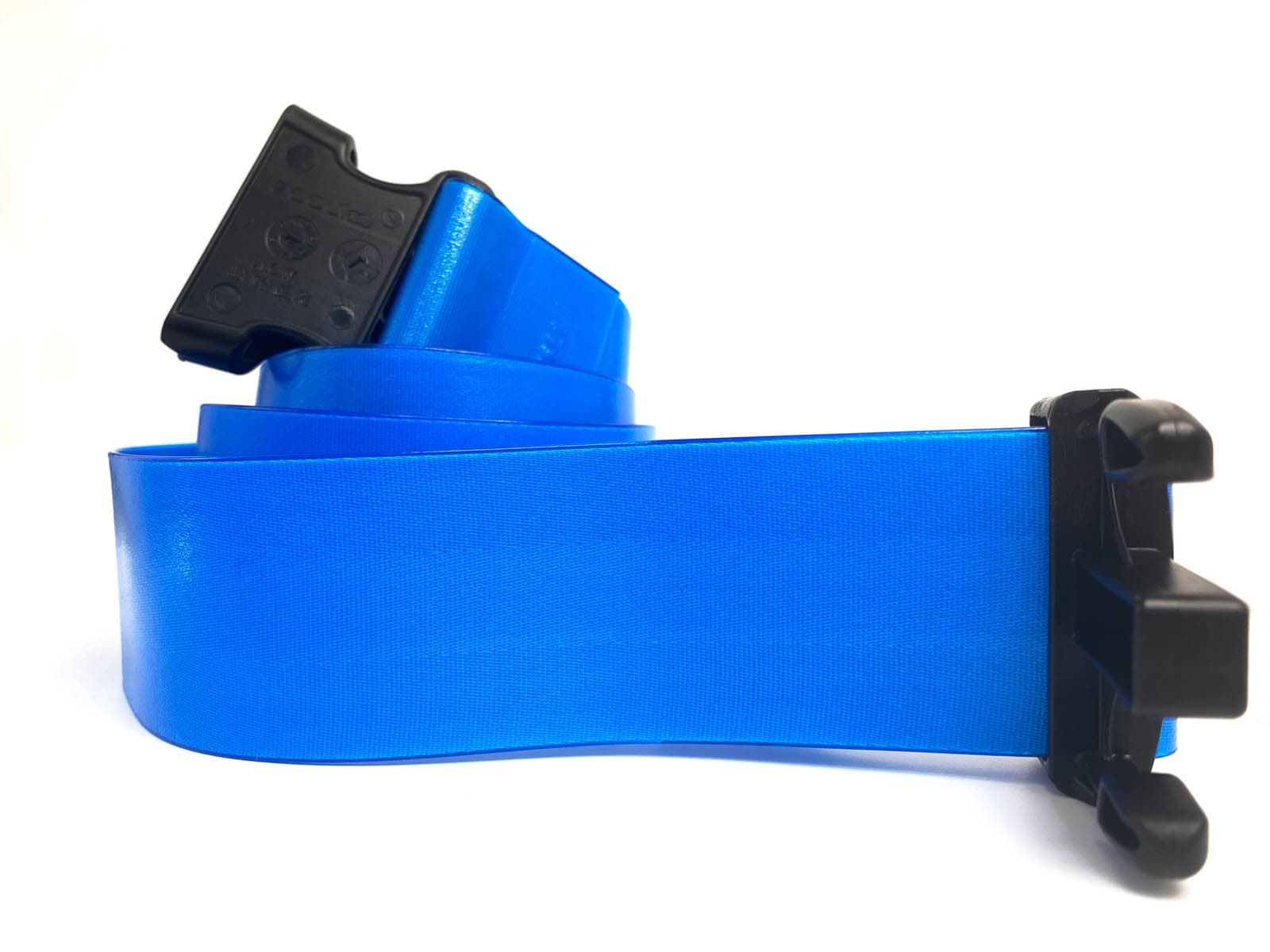

Gait belts
Patient restraints
EMS straps
Safe patient handling and position products
Lifting devices
Emergency stair chairs and evacuation chairs
Wheelchair straps
Shoulder straps for medical equipment bags

BioThane’s fabrication department can help with your manufacturing processes as well. BioThane Coated Webbing can be RF welded, meaning your medical straps can be completely sealed and cleanable without holes or perforations from sewing. BioThane can provide a finished product that has been laser cut, welded, fabricated, packaged, and more. Learn more about the following fabrication services for your medical application:

Product	Width	Thickness	Break Strength
B07UT200BL231-BSEM-T200A	2" (50.80 mm)	0.035'' (0.88 mm)	1,700lbf (771kgf)
B10SF200BL231-BSEM-T200B	2" (50.80 mm)	0.060" (1.52 mm)	4,400lbf (1995kgf)
B07UT100BL231-BSEM-T100A	1" (25.40 mm)	0.035'' (0.88 mm)	625lbf (283kgf)
B10TF100BL231-BSEM-T100B	1" (25.40 mm)	0.050" (1.27 mm)	1,250lbf (566kgf)
B07UT112BL231-BSEM-T112A	1 1/2" (38.10 mm)	0.035'' (0.88 mm)	1,100lbf (498kgf)
B10SF112BL231-BSEM-T112B	1 1/2" (38.10 mm)	0.060" (1.52 mm)	2,800lbf (1270kgf)
B07UT200BL401-BSEM-A200A	2" (50.80 mm)	0.035'' (0.88 mm)	1,700lbf (771kgf)
B10SF200BL401-BSEM-A200B	2" (50.80 mm)	0.060" (1.52 mm)	4,400lbf (1995kgf)
B07UT100BL401-BSEM-A100A	1" (25.40 mm)	0.035'' (0.88 mm)	625lbf (283kgf)
B10TF100BL401-BSEM-A100B	1" (25.40 mm)	0.050" (1.27 mm)	1,250lbf (566kgf)
B07UT112BL401-BSEM-A112A	1 1/2" (38.10 mm)	0.035'' (0.88 mm)	1,100lbf (498kgf)
B10SF112BL401-BSEM-A112B	1 1/2" (38.10 mm)	0.060" (1.52 mm)	2,800lbf (1270kgf)
