Gold 100, 300 Gold 100, 300

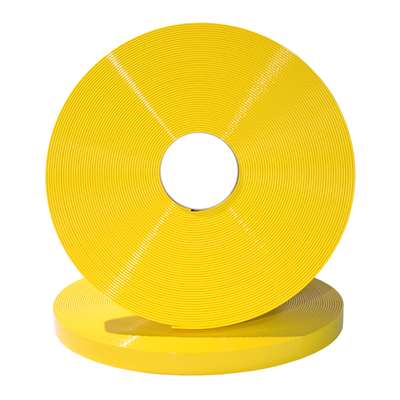

The Gold Series is BioThane Coated Webbing's oldest type of BioThane. We began our business in 1977 with a standard ½” black webbing used for dog collars. Today, this classic coating comes in two series: Gold 100 for gold opaque colors and Gold 300 for gold translucent colors and many profiles and strengths.
Width and Profile Options
* Break strength value is per inch of width. Example 2’’ (50.8mm) is 2000lbs (907.1847kg) or 3/4’’ (19.05mm) is 750lbs (340.194kg). ASTM D6775-02
** All Hole Pull Strength values are based on a 1’’ wide specimen. ASTM D4831
| Profile | Thickness | Break Strength * |
Hole Pull Strength ** |
Available Widths |
|---|---|---|---|---|
B05 Ultra Thin |
.030" - .040", .76mm - 1.02mm | 500lbs (226.796kg) | 40lbs (18.144kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
1" (25.40 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
|
B05 Super Flex |
.055" - .065", 1.40mm - 1.65mm | 500lbs (226.796kg) | 40lbs (18.144kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
1" (25.40 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
|
B10 Super Flex |
.055" - .065", 1.40mm - 1.65mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B10 High Flex |
.075" - .085", 1.91mm - 2.16mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B10 Standard |
.095" - .105", 2.41mm - 2.67mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B10 Grooved |
.095" - .105", 2.41mm - 2.67mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B10 Beaded |
.075" - .085", 1.91mm - 2.16mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B10 Ex Thick Grooved |
.125" - .135", 3.17mm - 3.43mm | 1000lbs (453.592kg) | 200lbs (90.719kg) |
3/8" (9.52 mm)
1/2" (12.70 mm)
9/16" (14.28 mm)
5/8" (15.87 mm)
3/4" (19.05 mm)
7/8" (22.22 mm)
1" (25.40 mm)
1 1/8" (28.57 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
2 1/2" (63.50 mm)
3" (76.20 mm)
4" (101.60 mm)
|
B30 Super Heavy |
.130" - .160", 3.30mm - 4.06mm | 3000lbs (1360.777kg) | 700lbs (317.515kg) |
|
B30 Super Heavy Grooved |
.130" - .160", 3.30mm - 4.06mm | 3000lbs (1360.777kg) | 700lbs (317.515kg) |
3/4" (19.05 mm)
1" (25.40 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
|
B30 Super Thick Grooved |
.175" - .195", 4.45mm - 4.95mm | 3000lbs (1360.777kg) | 700lbs (317.515kg) |
3/4" (19.05 mm)
1" (25.40 mm)
1 1/4" (31.75 mm)
1 1/2" (38.10 mm)
2" (50.80 mm)
|
Buy a Sample

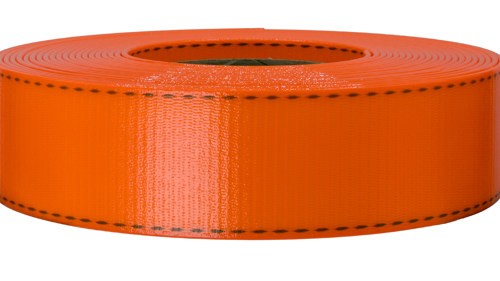

Thickness: 0.085" (2.16 mm) - High Standard (HS)
Break Strength: 7,000lbf (3175kgf)
Hole Pull: 325lbf (147kgf)
Width: 1 3/4" (44.45 mm)
Gloss: High Gloss
Base Price: $41.75 / 25' Roll
Thickness: 0.187" (4.75 mm) - Super Thick (TK)
Break Strength: 8,500lbf (3856kgf)
Hole Pull: 325lbf (147kgf)
Width: 1" (25.40 mm)
Gloss: High Gloss
Base Price: $54.73 / 25' Roll
