Beta 583

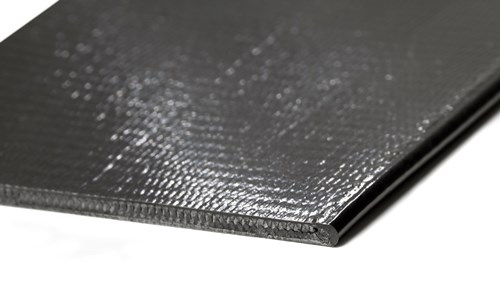

B30SF200BL583-BSEM-T200B

Width: 2" (50.80 mm)

Thickness: 0.060" (1.52 mm) - Super Flex (SF)

Webbing: B30 Polyester

Coating: PVC 82A (583)

Gloss: High Gloss

Application: Industrial

Break Strength: 5,500lbf (2494kgf)

Hole Pull Strength: 200lbf (90kgf)

Base Price: $92.10 / 50' Roll


Download Spec Sheet Additional Details

Additional Details

Break Strength (ASTM D6775)

5,500 lbf

Coating Texture

Sand Emboss

Coating Color / Gloss

Black / High Gloss

Webbing Color & Fiber

Black Polyester

Elongation at Break (ASTM D6775)

Coming soon

90° Flex Test Room Temp (pounds force)

5.43

90° Flex Test Cold Temp (pounds force)

Coming soon

Static COF - Steel Sled (ASTM D1894)

Coming soon

Kinetic CoF - 1/2" Sled, Belt on Belt (ASTM D1894)

0.832

Coating Adhesion (ISO 2411)

Coming soon

Hexbar Abrasion (ASTM D6770)

99.2%

Taber Abrasion (ASTM D4060)

0.002 grams

Accelerated Weathering (ASTM G155)

Excellent

Vicat Softening Temp °C (ASTM D1525)

49.2

Glass Transition Temp °C (ASTM E1356)

-17.6

Clorox® Healthcare Bleach Immersion (3 days)

Good

Opti-Cide3® Immersion (3 days)

Good

Diversey Oxivir® 1 Immersion (3 days)

Poor

Diversey Virex®  Tb Immersion (3 days)

Good

Biocompatibility - Cytotoxicity (ISO 10993)

Pass (2)

Biocompatibility - Irritation (ISO 10993)

Pass (0)

Resistance to Fungi (ASTM G21)

4 (>90%)

Antibacterial Assessment - E. coli (ISO 22196)

Coming soon

Antibacterial Assessment - S. aureus (ISO 22196)

Coming soon

Regulatory

DISCLAIMER: Properties of BioThane® test results were compiled at BioThane Coated Webbing Corp. The information contained herein is believed to be reliable, but no representations, guarantees or warranties of any kind are made to its accuracy, suitability for particular applications, or the results to be obtained there from. The information is based on laboratory work with small-scale equipment and does not necessarily indi­cate end-product performance. Because of the variations in methods, conditions, and equipment used com­mercially in processing materials, no warranties or guarantees are made as to the suitability of the products for the applications disclosed. Full-scale testing and end-product performance are the responsibility of the user. SELLER MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IM­PLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE.
